PES Copolyester Double-sided Hot Melt Adhesive Film
Certification : SGS RoHS 2.0
Model : TJS125,XJS130, TJS130
Place of Origin : China
The composition of PES double-sided hot melt adhesive film is copolyester, which has excellent washing resistance, but no elasticity.
PES double-sided hot melt adhesive film is suitable for bonding a variety of materials. It can be used to bond fabric textile, sponges, films, rubber, plastics and metals. It is widely used in the fields of clothing, shoes, hats, industrial products and daily necessities. This product has passed SGS’s RoHS 2.0 test.
Applicable bonding materials:
We have three types of PES double-sided hot melt adhesive film, namely TJS125, XJS130 and TJS130. Among them, TJS125 hot melt adhesive film without release backing paper, and the color is white matte; XJS130 hot melt adhesive film, with release backing paper, and the color is white matte; TJS130 hot melt adhesive film, with With release backing paper, the color is milky white.
Technical Data Sheet
|With release paper||NO||YES||YES|
|Color/shape||White translucent/film shape||White translucent/film shape||Milky white/film shape|
|Melting range (℃)||115-125||115-125||125-130|
|Customizable thickness range (mm)||0.04-0.10||0.05-0.60||0.05-0.60|
|Customizable wide range（mm）||5-1600||5-1500||5-1100|
|Customizable length of each roll（meters）||5-2000||5-500||5-500|
|Recommended use parameters||Use temperature（℃）||130-160||130-160||130-160|
|Characteristic||No elasticity, washable|
The thickness, width and length of each roll of PES hot melt adhesive film
We can customize the thickness, width and length of each roll of hot melt adhesive film, please refer to the above technical parameter table. For example, if you want to customize products of 48cm, 100cm width, or 1cm, 2cm width, we can do it. However, different types of PES hot melt adhesive films have different customization ranges for each roll of length, width and thickness.
The difference between different types of PES hot melt adhesive film, and product pictures
TJS125 model PES hot-melt adhesive film
The TJS125 model PES hot melt adhesive film does not have a release backing paper, the thinnest thickness is 0.04mm, and the white matte color.Usually 300 meters or 500 meters per roll.
Common length of each roll:500 meters/roll
XJS130 model PES hot-melt adhesive film
The XJS130 model PES hot melt adhesive film has a release backing paper, usually 100 meters or 100 yards per roll, and the color is similar to the TJS125 model, all in white matte color.
Common length of each roll:100 meters/roll
TJS130 model PES hot-melt adhesive film
TJS130 type PES hot melt adhesive film is milky white and opaque. The thickness of the regular stock product is 0.10mm. It comes with a layer of release paper.
Common length of each roll:500 meters/roll
Breathable and soft mesh PES hot-melt adhesive web
If you think that PES hot melt adhesive film is more expensive and has no air permeability, then you might consider using hot melt adhesive web. Hot melt adhesive web is a net-like hot melt adhesive product, which looks similar to non-woven fabrics, has a soft hand feel, has good air permeability, and has a lower weight, so the cost is lower. Don’t worry about its environmental performance, because it is similar to the hot melt adhesive film, and it is a hot melt adhesive product. We have passed the RoHS 2.0 test of SGS. You can click here to view different types of hot melt adhesive webs, or you can view only PES-type hot melt adhesive webs.
Source manufacturer, providing wholesale sales
We are a manufacturer of hot melt adhesive film & web in China, not a trader, you can get more favorable wholesale prices. We have multiple production equipments with a daily output of 90,000 meters.
Made of 100% hot melt adhesive particles
The hot melt adhesive film & web we produce are made of 100% hot melt adhesive particles, and no other materials (such as talcum powder) are added to ensure better bonding performance and quality of the product.

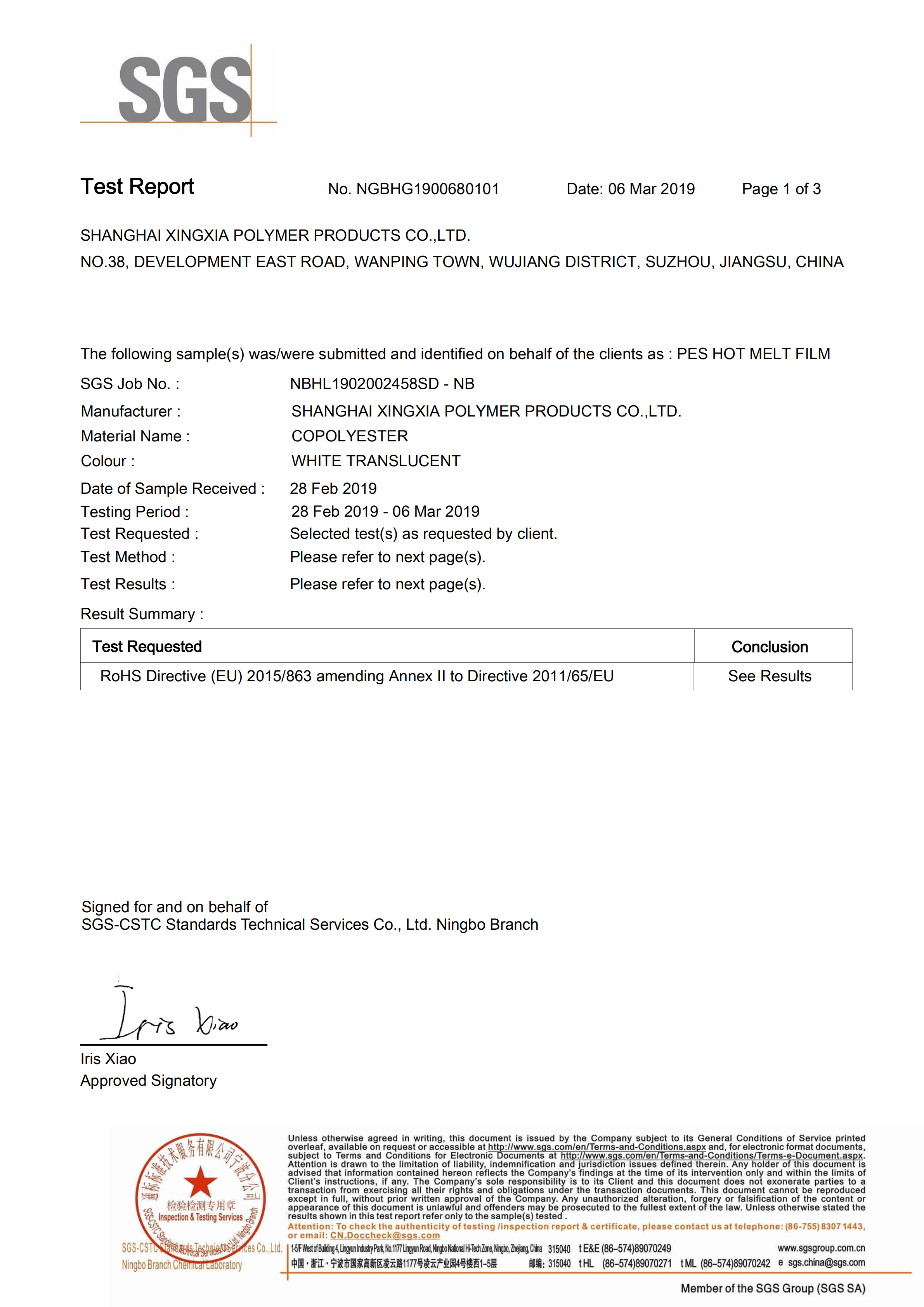

Has passed SGS's RoHS 2.0 test
The product has passed SGS's RoHS 2.0 test. It is safe and has no harm to the body. It can be exported to Europe, America and other countries.
The use of PES hot melt adhesive film with backing paper and without backing paper is different. The hot melt adhesive film without backing paper only needs to be ironed between the two layers of materials to be bonded; while the hot melt adhesive film with backing paper needs to be ironed on the backing side. Laminate it with one material and then with another material.
We support non-standard customization, including: width, thickness, length of each roll and other items, etc., please refer to the technical table, please contact us for details.
There are many reasons why the hot melt adhesive film is not firmly bonded, including the operation method, equipment condition and the selected hot melt adhesive film type. Among them, it is particularly important to choose different types of hot melt adhesive films for bonding different materials, because each type of hot melt adhesive film has its own good bonding materials, which is not determined by its price. of. For example, when you plan to bond two kinds of EVA foam, it is more recommended to use EVA type hot melt adhesive film instead of TPU hot melt adhesive film, even if the price of TPU hot melt adhesive film is more expensive.I suggest you click here for more details.
We can provide free samples to facilitate your testing. But we cannot bear the international logistics costs. It is best if you have a DHL, FedEx or TXT account.
We have a variety of packaging solutions. Usually the packaging used for the entire roll is: PE bubble film + kraft paper woven bag, and the inner diameter of the paper tube is 76mm. If you need carton packaging and adding marks, please contact us.
Store in a dry place at room temperature and avoid direct sunlight. Theoretically speaking, the product has no shelf life limit, but it is not recommended to leave it for more than 18 months when it is not in use.
We support T/T, PayPal, Alipay, WeChat and other payment methods, and can provide FOB, EXW, CIF, DDU and other methods of quotation. The lead time varies according to the product model and quantity, usually between 3-30 days.
You can try to apply simple equipment, such as an iron or a flat ironing machine. If you need more professional and efficient equipment, I can recommend equipment manufacturers in China and provide technical support.
Yes, we can accept OEM, you can send us your requirements, and we will pack and label according to your requirements.
Hot melt adhesive films are divided into many types and models according to their composition. They are different in terms of elasticity, color, washing resistance and suitable fields. They are divided into TPU hot melt adhesive film, PES hot melt adhesive film, and EVA Hot melt adhesive film, PO hot melt adhesive film, and PA hot melt adhesive film, etc. Among them, PES hot melt adhesive film is one of them. You can view more details by viewing an article on the classification of hot melt adhesive film types.
Yes, we can customize fusible webs and hemming webs, and we have relevant production experience, such as 45 cm width * 5 m length/roll and 43 cm width * 93 cm width/bag, etc. If you have a product sample like this, we can customize the finished product according to your sample and packaging design drawing. MOQ is 2000 units/model.
The PES hot melt adhesive film we produce is a thermoplastic hot-melt adhesive film. When it is exposed to high temperatures, it will melt repeatedly, not just once. Therefore, after you use it to make a product, you should not expose it to high temperatures again.
