PES Copolyester double-sided hot melt adhesive web interlining

USD 0.01
Lowest wholesale price (square meters)

Product Introduction

The composition of PES hot melt adhesive web is copolyester, which has excellent washing resistance.

PES hot melt adhesive web is also called PES double-sided adhesive interlining. It has no stickiness at room temperature, but has stickiness on both sides at high temperature. It is an environmentally friendly hot melt adhesive product. PES hot melt adhesive web is white in color, has excellent washing resistance, and has good adhesion to polyester fabrics and polyester materials. It can be widely used in clothing, home textile underwear, building materials, water treatment and other fields.

Applicable bonding materials:

Applicable fields:


Technical Data Sheet

Model TWS105
Ingredient PES (copolyester)
Color/shape White/similar to non-woven fabric
Melting range (℃) 105-125
Customizable weight range(gms) 8-120
Customizable wide range(mm) 5-3260
Customizable length of each roll(meters) 5-2000
Recommended use parameters Use temperature(℃) 125-155
Ironing pressure(MPa) 0.2
Ironing time(s) 10-20
Characteristic Breathable, excellent washing resistance

Introduction to the square meter weight, width and length specifications of PES hot melt adhesive web

We can customize each roll of hot melt adhesive web; please refer to the technical parameter table above. For example, if you want to customize 48cm, 100cm width or 1cm, 2cm width, we can do it. However, for each roll length, width and square meter weight, different PES hot-melt adhesive webs have different customization ranges.

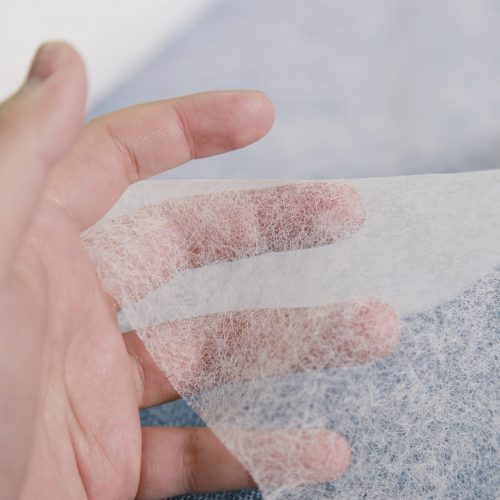

PES hot melt adhesive web product picture.

Stronger PES hot-melt adhesive film

If you think the PES hot melt adhesive web’s bonding fastness is not enough, you may wish to consider using PES hot melt adhesive film products. PES hot melt adhesive film product is a kind of film-like hot melt adhesive product. Because of the higher glue content per square meter, it has higher adhesion and viscosity. You can click here for details. Of course, in addition to PES hot melt adhesive film, we also have other types of hot melt adhesive film; you can click here to view.

Our advantage


Source manufacturer, providing wholesale sales

We are a manufacturer of hot melt adhesive film & web in China, not a trader, you can get more favorable wholesale prices. We have multiple production equipments with a daily output of 90,000 meters.

Hot melt adhesive pellets

Made of 100% hot melt adhesive particles

The hot melt adhesive film & web we produce are made of 100% hot melt adhesive particles, and no other materials (such as talcum powder) are added to ensure better bonding performance and quality of the product.

RoHS 2.0

Has passed SGS's RoHS 2.0 test

The product has passed SGS's RoHS 2.0 test. It is safe and has no harm to the body. It can be exported to Europe, America and other countries.


PES hot melt adhesive web usage method is relatively simple. Just place it between the two layers of materials that need to be bonded, and then use an iron or other ironing equipment to iron on one of the materials so that the heat is transferred to the hot melt adhesive web in the middle and melted, that is Two materials can be bonded together. For a more detailed introduction, please read “How to Use Hot Melt Adhesive Web.”

We support non-standard customization, including width, weight, length of each roll and other items, etc., please refer to the technical table, please contact us for details.

There are many reasons why the hot melt adhesive web is not firmly bonded, including the operation method, equipment condition and the selected hot melt adhesive web type. Among them, it is particularly important to choose different types of hot melt adhesive webs for bonding different materials, because each type of hot melt adhesive web has its own good bonding materials, which is not determined by its price. of. For example, when you plan to bond two kinds of EVA foam, it is more recommended to use EVA type hot melt adhesive web instead of TPU hot melt adhesive web, even if the price of TPU hot-melt adhesive web is more expensive. I suggest you click here for more details.

We can provide free samples to facilitate your testing. But we cannot bear the international logistics costs. It is best if you have a DHL, FedEx or TXT account.

We have a variety of packaging solutions. Usually, the packaging used for the entire roll is: PE bubble film + kraft paper woven bag, and the inner diameter of the paper tube is 76mm. If you need carton packaging and adding marks, please contact us.

Store in a dry place at room temperature and avoid direct sunlight. Theoretically speaking, the product has no shelf life limit, but it is not recommended to leave it for more than 18 months when it is not in use.

We support T/T, PayPal, Alipay, WeChat and other payment methods, and can provide FOB, EXW, CIF, DDU and other methods of quotation. The lead time varies according to the product model and quantity, usually between 3-30 days.

You can try to apply simple equipment, such as an iron or a flat ironing machine. If you need more professional and efficient equipment, I can recommend equipment manufacturers in China and provide technical support.

Yes, we can accept OEM, you can send us your requirements, and we will pack and label according to your requirements.

Hot melt adhesive webs are divided into many types and models according to their composition. They are different in terms of elasticity, color, washing resistance and suitable fields. They are divided into TPU hot melt adhesive web, PES hot-melt adhesive web, EVA Hot melt adhesive web, PA hot-melt adhesive web, etc. Among them, PES hot melt adhesive web is one of them. You can view more details by viewing an article on the classification of hot melt adhesive film types.

Yes, we can customize fusible webs and hemming webs, and we have relevant production experience, such as 45 cm width * 5 m length/roll and 43 cm width * 93 cm width/bag, etc. If you have a product sample like this, we can customize the finished product according to your sample and packaging design drawing. MOQ is 2000 units/model.

The PES hot melt adhesive web we produce is a thermoplastic hot-melt adhesive web. When it is exposed to high temperatures, it will repeatedly melt, not just once. Therefore, after you use it to make a product, you should not expose it to high temperatures again.
